NEC MA Series Panels


View Models:

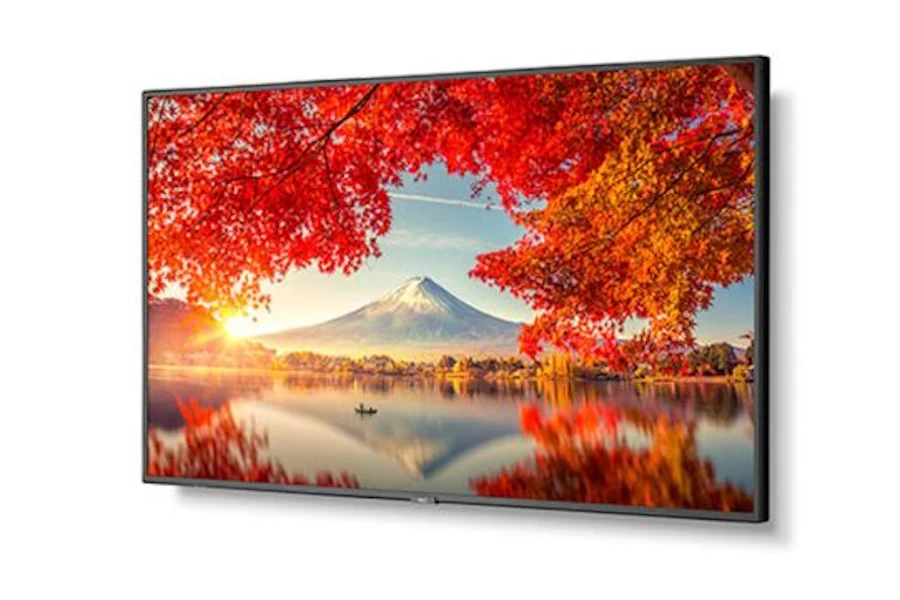

MA Series 4K Panel

When true-to-life colour rendition is essential, the NEC MA Series (Message Advanced) advanced feature set delivers calibrated precision, without compromise. The MA series offers versatile functionality for corporate signage and prestige retail applications.

For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MA series at the high end of professional content delivery. The MA series’ modular design includes Intel® Smart Display Module (Intel® SDM) technology integrated into the display, facilitating powerful media playback for the most intuitive signage creation and delivery. Featuring an integral audio amplifier, multi-picture mode technology and extensive connectivity including video out.

  • Designed for 24/7 operation
  • Professional haze filter minimises reflections
  • Intelligent NEC adaptive cooling system
  • Driving content with RPi4 or Intel® SDM advanced computing
  • Wide colour gamut panel and SpectraView® engine for superb colour accuracy
  • Advanced connectivity including HMDI x 2 / DP x 2 / Out
  • Metal back cover safe for use in public spaces

Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation.

Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience.

Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory.

Enhanced imaging performance advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.

Mission-critical 24/7 ready operation the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

Calibration

  • Factory Calibration - Gamma; Intensity; RGB; Uniformity; White Point
  • Sensor Calibration (through USB) - PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
  • Calibration with Software - Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
  • Calibration Software - NEC Display Wall Calibrator

Range Specifications:

Please choose a model for more specific specifications.

Panel

Technology
LCD IPS
Image Size
43 - 55"
Brightness
500 Nits

Refresh Rate

Refresh Rate
60 Hz
Horizontal
15 - 135 kHz
Vertical
23 - 86 Hz

System

Operating System
-
CPU
-
GPU
-
RAM
-
ROM
-
SD Card
-
PC Card
-
AI Processing
-
Upscaling
-
Sensors
Ambient Light, Temperature

Viewing Angles

Horizontal
178°
Vertical
178°

General

Warranty
-
Orientation
Face-Up, Landscape, Portrait
Country of Origin
-
Bezel
Metal, Black

Connections:

Inputs

Microphone In
-
Mini Jack
-
RCA Audio
-
BNC
-
Component Video
-
Composite
-
Digital
HDMI(x2)
Display Port
Display Port(x1)
Video LAN
-
VGA
-
USB
A(data)
B(data)
RS232 In
RS232
LAN In
LAN (RJ45)
Wireless
-
Wireless Adaptor
-
Bluetooth
-
Smartphone
-
Antenna
-
TV Tuner
-
OBS
Intel Smart Display, Rasberry Pi
DICOM
DICOM Simulation

Outputs

External Speakers
-
Mini Jack
3.5mm
RCA Audio
-
BNC
-
Component Video
-
Composite
-
Digital
HDMI(x1)
Display Port
Display Port(x1)
Video LAN
-
VGA
-
USB
A(power, 2A)
RS232 Out
-
LAN Out
-

Control

PVR
-
Control Software
AMX, Crestron, PJLink, HDMI CEC
Calibration
-

16:9 RangeDiagonalResolution

43" 4K UHD (3840 x 2160) $2,178 Delivered
RRP $2,629Save: 17%

49" 4K UHD (3840 x 2160) $2,552 Delivered
RRP $2,995Save: 15%

55" 4K UHD (3840 x 2160) $2,817 Delivered
RRP $3,458Save: 19%
