ViisanK21 Document Camera


Viisan K21
K21 Document Camera

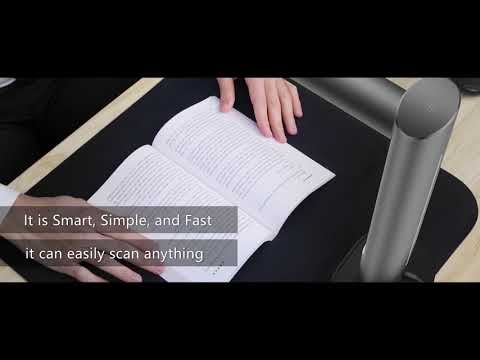

K21 Video Thumbnail
Call for Price
1300 88 11 79 1300 88 11 79
RRP $0

Smart & Professional Visualiser Camera Scanner

The Viisan K21 is a smart and professional camera scanner with the laser positioning guide feature for desktop and laptop using the USB connection. with its built-in 20.1-megapixel CMOS camera sensor it can capture and output exceptional quality images.

Along with these great features, you can use the bundled OfficeCam scanning software with this scanner to get great results while scanning books. For example, it can automatically digitally flatten curved pages, erases fingers from the scanned photos, repairs the damaged edges of documents, purifies background, rotates pages based on text orientation, and automatically splits the both-side page into the separate image file. besides, you can use the embedded OCR feature to convert a batch scanned images into a searchable PDF or editable Word, Excel, Text-to-speech file formats

Create Teaching Video Tutorials

Thanks to the sub-camera recording function. The OfficeCam software allows you to create an interactive video tutorial by using the laptop webcam with the Viisan K21 visualiser camera to record yourself teaching.

  • Aluminum
  • Smart Laser positioning
  • High scanning quality
  • Visualiser Function (through a PC) at 1920 x 1080@30fps
  • Object Size: up to A3 (426 x 320mm)
  • Resolution: 21 MP (5104 x 3920)
  • Colour 24 bit
  • Document Format: PDF/WORD/TXT/EXCEL
  • Image Format: JPG, TIFF, BMP, PNG
  • Video: AVI, MPEG, FLV, WMV
  • Lens Focus: Fixed Focus
  • Light Source: 4 LEDs
  • Interface: USB 2.0 Type B (For PC Connection)
  • USB 2.0 Type-A (For USB Extension)
  • System: Windows 7/8/8.1/10/XP, MAC
  • Size: 30.7 x 15 x 40.2cm
  • Weight: 1.2 kg

create video tutorials

Multi-function Scanner:

It can automatically scan when the device detects a page being turned. The Viisan K21 also automatically digitally flattens curved pages,erases fingers from the scanned photos,repairs the damaged edges of documents,rotates pages based on text orientation,and automatically splits double-page into separate images.

K21

Powerful OCR text recognition

High Efficiency:

The automatic continuous scanning feature allows you to scan documents efficiently. To optimize your efficiency, it allows scan and crop multiple cards at once. Built-in top LED light,3-level touch switch allows you to switch the brightness according to the environment, which makes you can take clear photos even in the dark.

USB Plug & Play:

UVC compatible and driver-free,only need a USB cable to connect to the computer,compatible with Windows 7/8/8.1/10/XP and MAC system. Foldable design makes it easy to carry around.

Image Sensor 20.1-Megapixel CMOS Sensor
Max. Resolution Optical: 5104 x 3920 Pixels
Software Interpolation: 10884 x 8163 Pixels
Output DPI Up to 600dpi (Through OfficeCam software)
Max. Shooting Area Max. Scan Size up to A3 (420 × 297 mm / 16.5×11.7 in), Supporting A4-size opened books
Max. book scanning thickness 420 × 297 mm: supports 35 mm
297 × 210 mm: supports 50 mm
Color Mode Color (Enhanced)
Color (Original)
Greyscale
B&W
Color Bit Depth 24 bit
Lens Focus Fixed
Laser Projection Built-in
Light Source Built-in High-brightness LED
Status-LED Scanning: Green-light flashing
Video Recording: Red-light flashing
OCR Supports 130+ languages
Scanning Speed 1 sec. per A3 page
Scanning methods Hand Button Control
Foot Pedal Control
Button Control (on software)
Auto-Scanning (triggered by page turning)
Output Format Picture: JPG, TIFF, BMP, PNG
Document: PDF(Image), PDF (Searchable), PDF (Text), Excel, WORD, TEXT
E-book: EPUB
Text To Speech: MP3, WAV
Video: AVI, MPEG, FLV, WMV
Video Streaming Frame Rate Visualizer: 1920 x 1080@30fps
Preview: 2048 x 1536@15fps
Video Compression MJPG
Interface USB 2.0 Type B x 1 (For PC Connection)
USB 2.0 Type-A x 1 (For USB Extension)
Power USB-Powered, 5V /1A
Dimension Folded size:110 (L) X 150 (W) X 402 (H) mm
Working size: 307 (L) X 150 (W) X 402 (H) mm
Net Weight Approx. 1.2kg
Bundled Software VIISAN OfficeCam Scanning Software
System Requirements Windows 7/8/10/11
macOS 10.15 or later
Accessories USB Cable x 1
Scanning Pad x 1
Quick Start Guide x 1
Hand Button x 1
Foot Pedal x 1
